Roter Linienlaser XL650-5 für Tabletop Spiele. Helle und gut sichtbare Laserlinie für das Anzeigen …

Product information "Roter Linienlaser XL650-5 für Tabletop Spiele. Helle und gut sichtbare Laserlinie für das Anzeigen …"

This red line laser is perfect for all tabletop games. The bright and visible laser line visualizes the line of sight clearly - for an exact and fair gameplay.

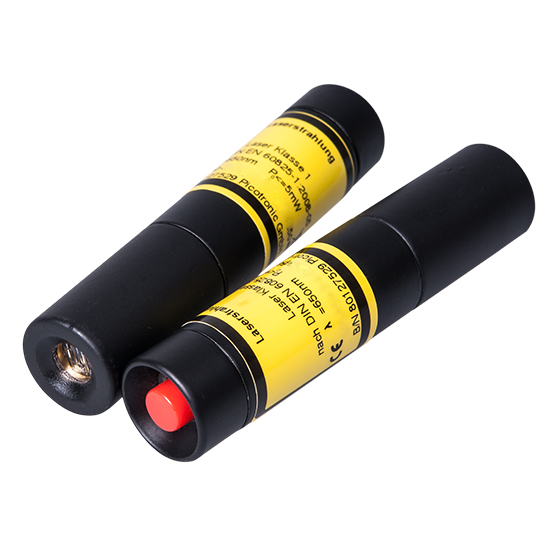

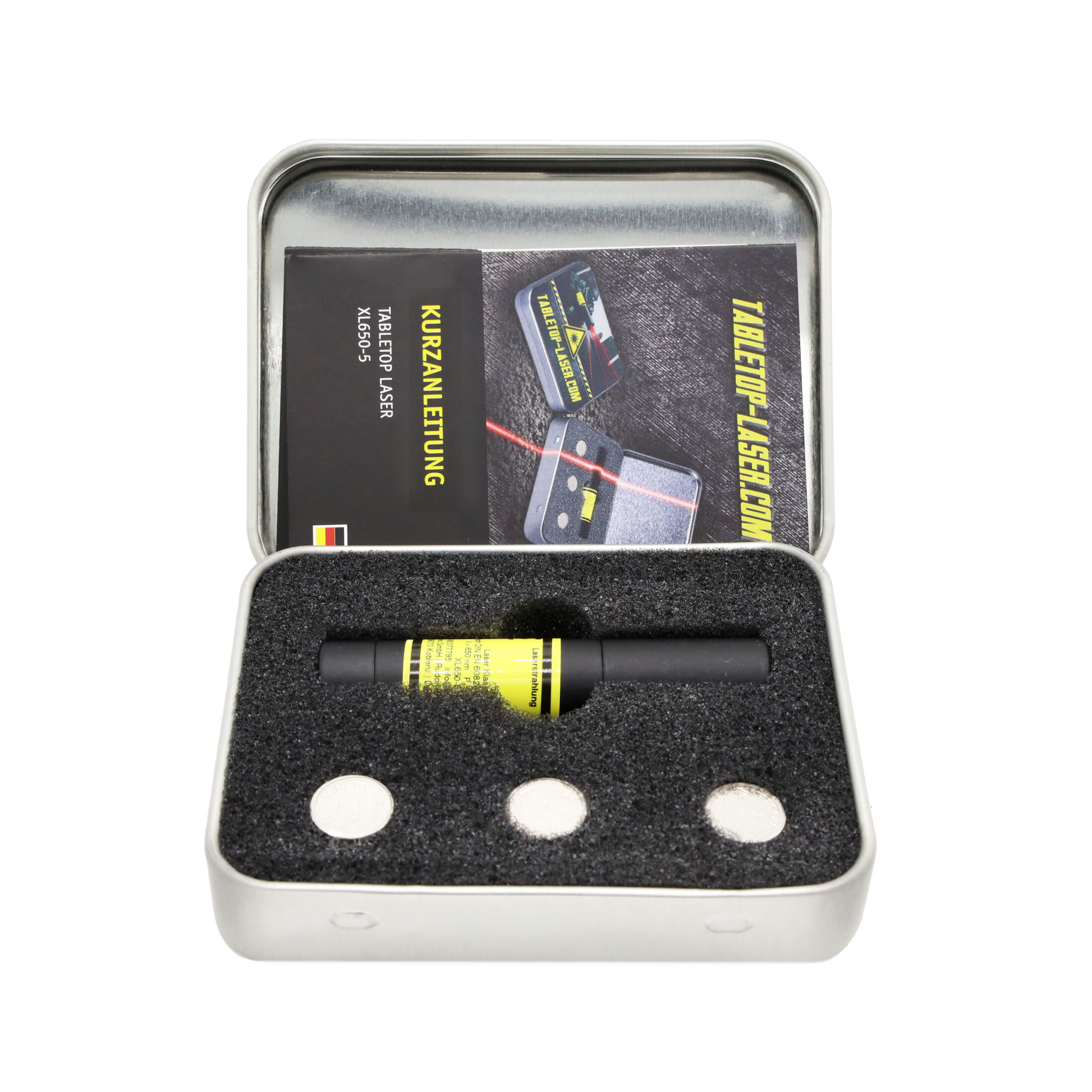

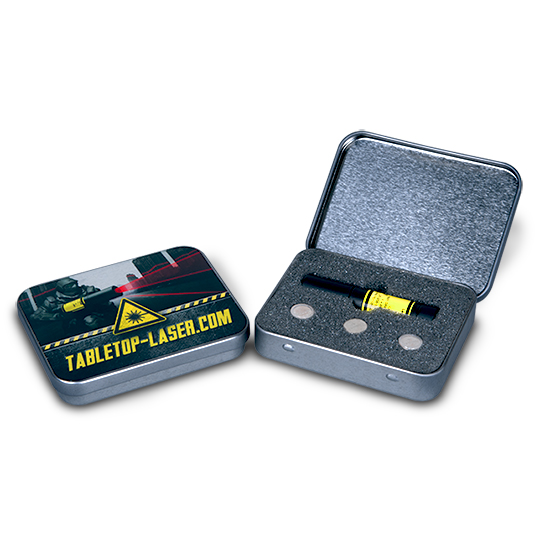

The new line laser XL650-5 is the perfect visual aid for all true tabletop fans and therefore a valuable aid for a fair and exact gameplay. The laser is packaged in a compact, sturdy metal tin and fits comfortably in any figure case.

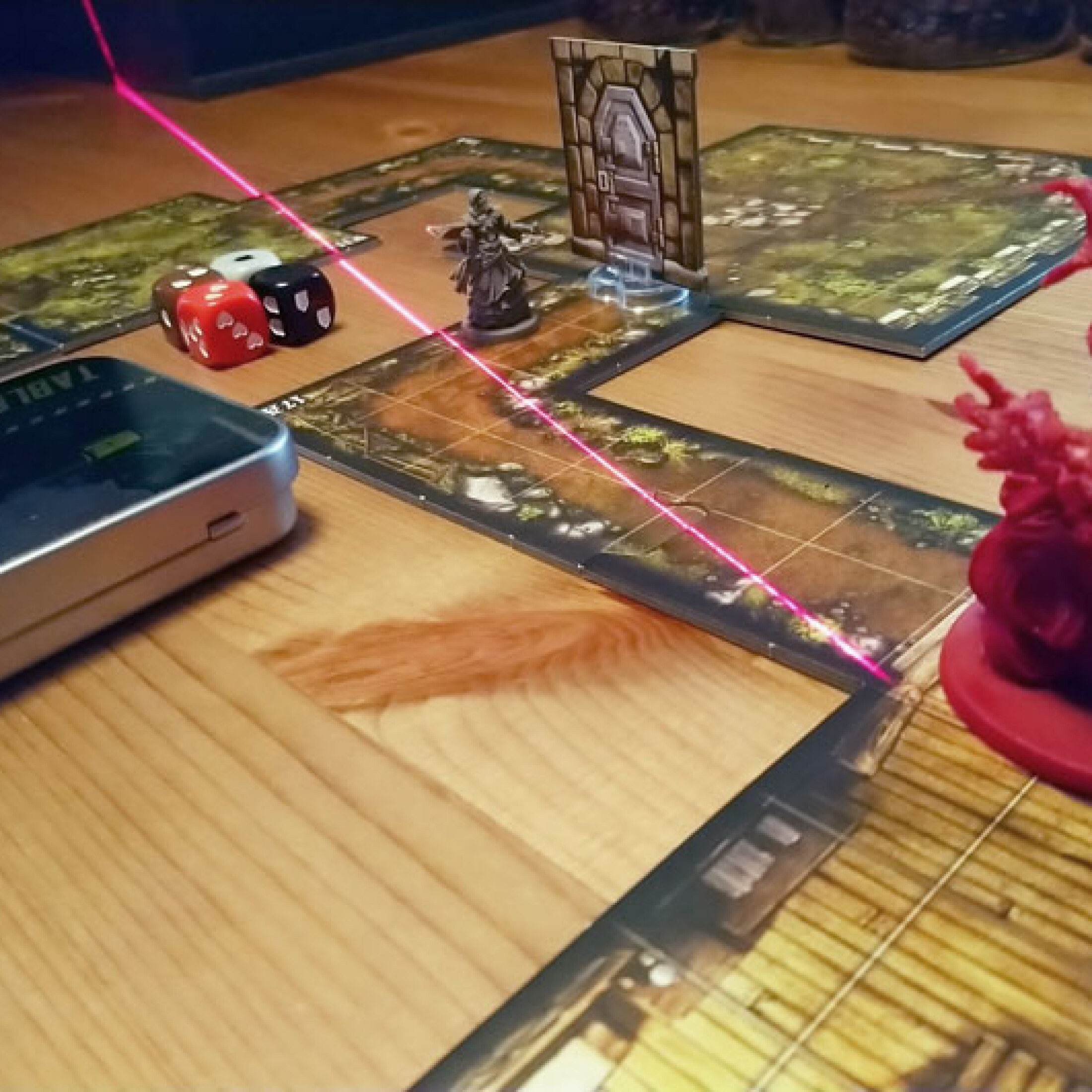

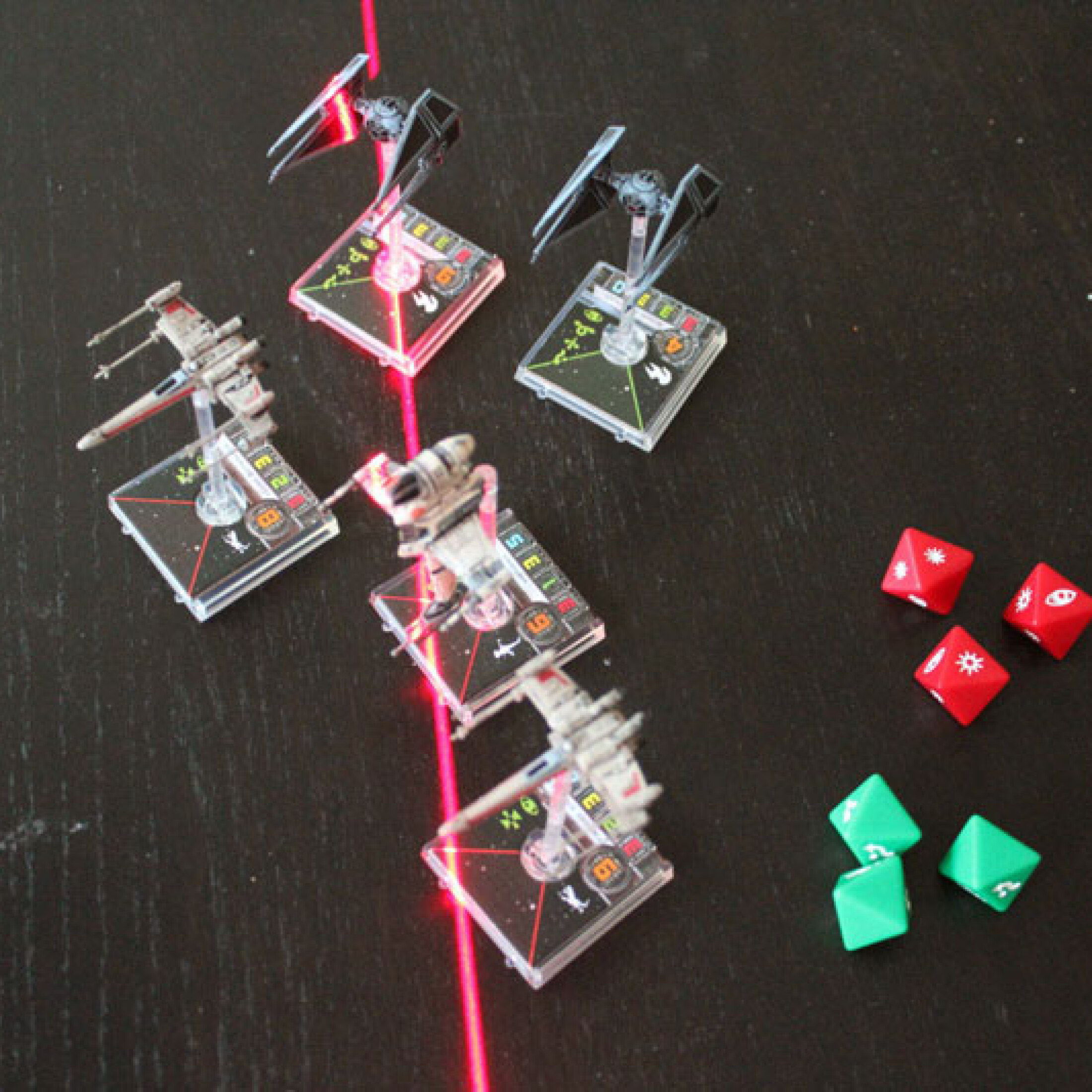

Regardless of whether orcs, demons, undead or hobbits are fighting, the laser line illuminates the entire table perfectly and is also clearly recognizable in bright ambient light. The tabletop laser XL650-5 can be used safely thanks to laser class 1 - you can use it without hesitation and without any legal requirements. Three replacement packs with batteries and the sturdy metal box for safe storage at tournaments, competitions or at home complete the package.

  • Made for Tabletop games
  • Laser Class 1
  • With battery
  • Compact size
  • Uniform line thickness
  • Perfect visual aid for all true tabletop fans
  • The laser line illuminates the entire table perfectly and is also clearly recognizable in bright ambient light
  • The tabletop laser XL650-5 can be used safely thanks to laser class 1
  • Three replacement packs with batteries
  • The laser is packaged in a compact, sturdy metal tin and fits comfortably in any figure case.

Accessesories

Magnetic Mount for Lasermodul 15mm
15mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm
Magnetic Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm
Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 15mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO

Main Data

  • EAN: 4260129042534
  • Warranty: 1 years
  • Customs tariff number: 90132000000

Technical Parameters

  • Lifetime: > 3,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

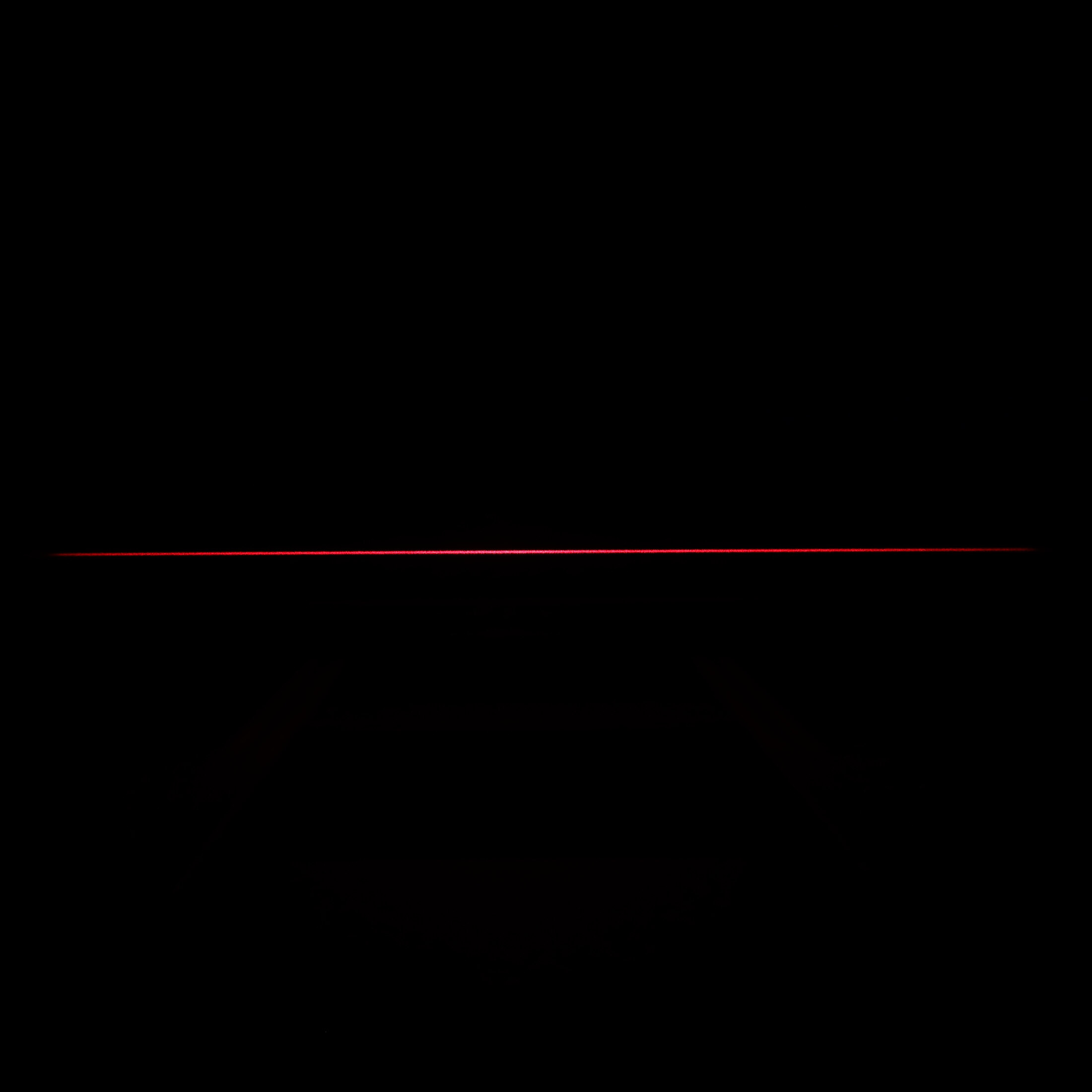

  • Beam Shape: Line
  • Optical Power: 5 mW
  • Laser Class: 1
  • Divergence: H - 1.0 mrad
  • Fan Angle: 90 °
  • Line Thickness: <1.2mm@1m
  • Operating Distance: 1 m
  • Optics: acryl lense
  • Laser technology: diode
  • Focus: fixed (1000mm)

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 3 - 4.5 V DC
  • Operating Current: 20 mA

Mechanical Parameters

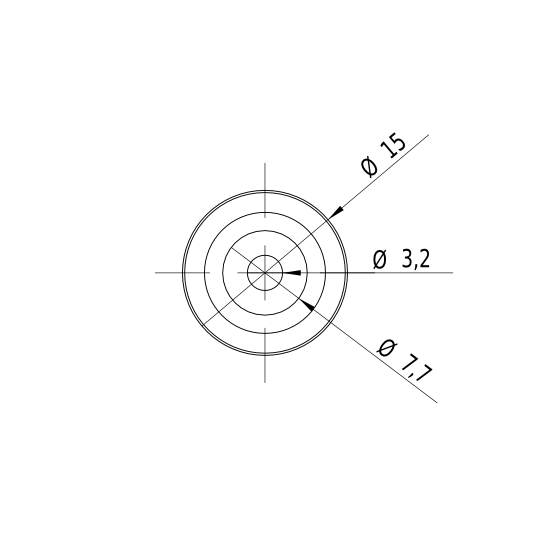

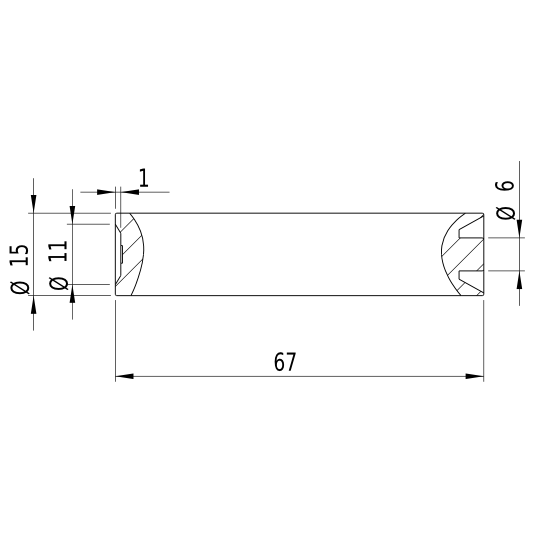

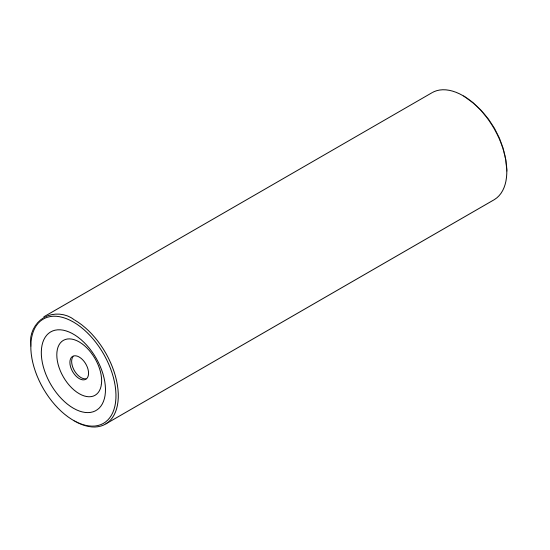

  • Size: Ø15x68 mm
  • Material: aluminium
  • Output Aperture: 6 mm
  • Housing Color: black
  • Weight: 80 g

Buy XL650-5 on Amazon
Optische Diodenleistung: 5 mW
