Roter Punktlaser XD650-1 für Tabletop Spiele. Heller und gut sichtbarer Laserpunkt für das Anzeigen…

Product information "Roter Punktlaser XD650-1 für Tabletop Spiele. Heller und gut sichtbarer Laserpunkt für das Anzeigen…"

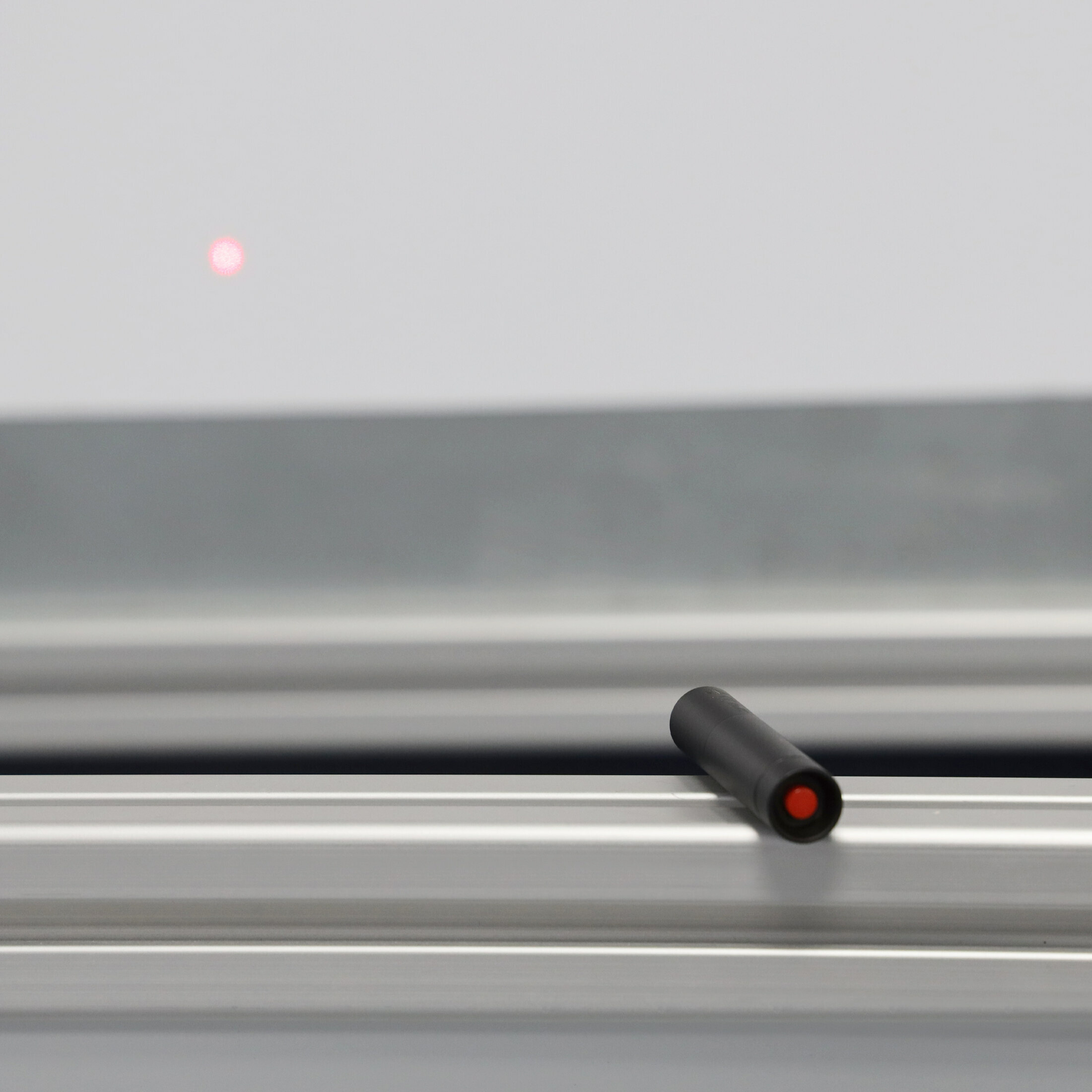

This red point laser is perfect for all tabletop games. The bright and visible laser point visualizes the point of sight clearly - for an exact and fair gameplay.

The new point laser XL650-1 is the perfect visual aid for all true tabletop fans and therefore a valuable aid for a fair and exact gameplay. The laser is packaged in a compact, sturdy metal tin and fits comfortably in any figure case.

Regardless of whether orcs, demons, undead or hobbits are fighting, the laser point illuminates the entire table perfectly and is also clearly recognizable in bright ambient light. The tabletop laser XD650-1 can be used safely thanks to laser class 1 - you can use it without hesitation and without any legal requirements. Three replacement packs with batteries and the sturdy metal box for safe storage at tournaments, competitions or at home complete the package.

  • Made for Tabletop games
  • Laser Class 2
  • With battery
  • Compact size

Accessesories

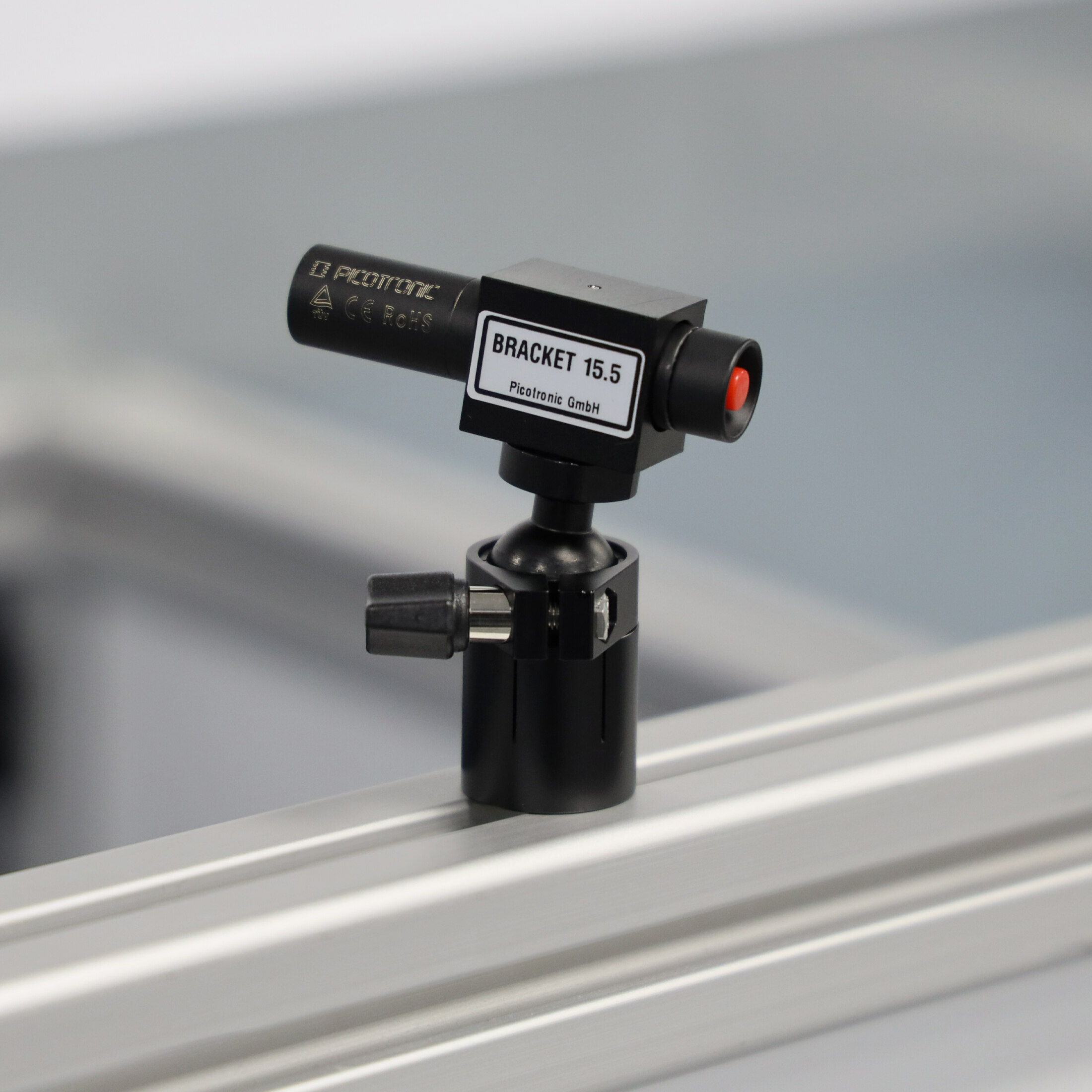

Magnetic Mount for Lasermodul 15mm
15mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm
Magnetic Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm

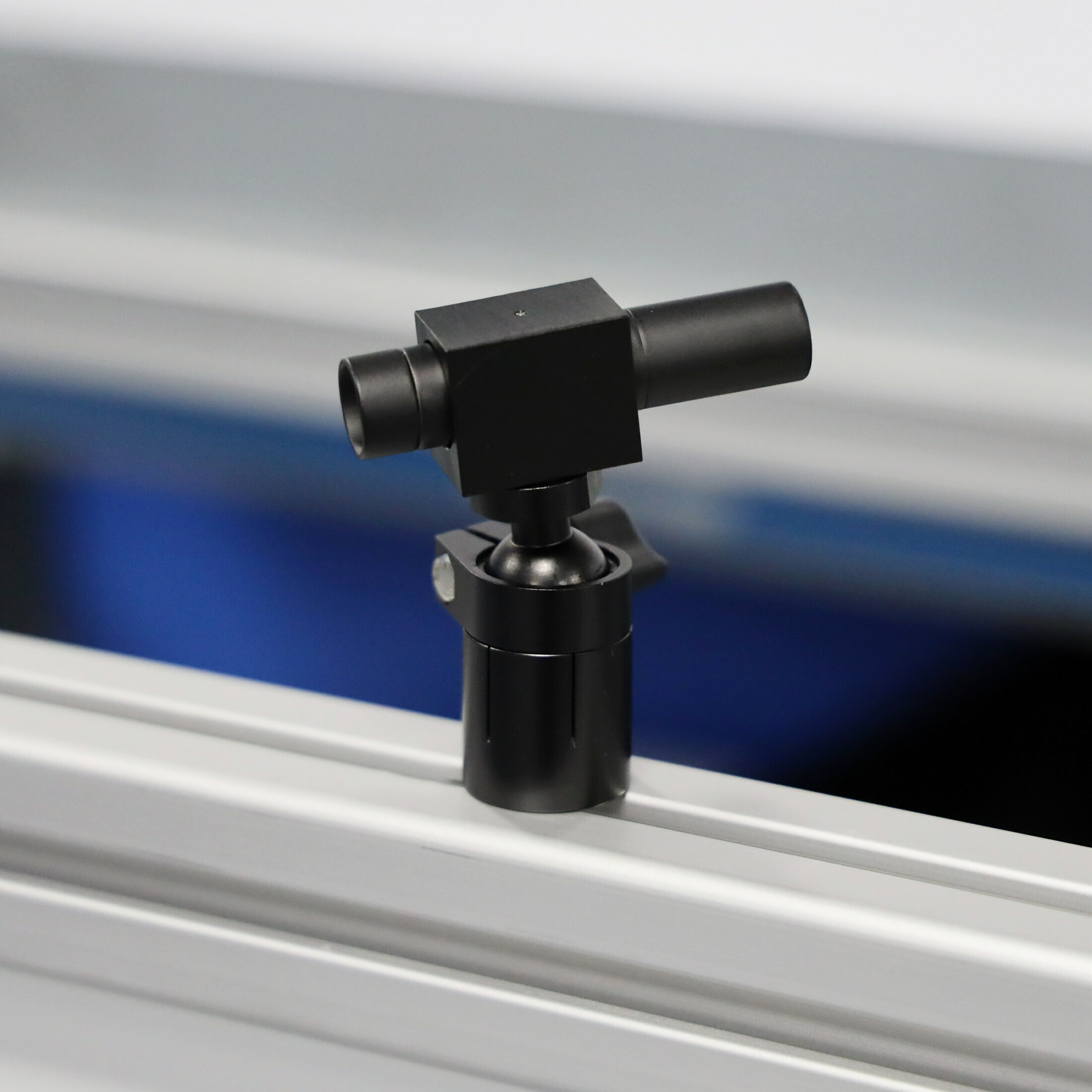

Mount for Lasermodul 15mm
Ø15mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 15mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO

Main Data

  • EAN: 4055132013530
  • Warranty: 1 years
  • Customs tariff number: 90132000000

Technical Parameters

  • Lifetime: > 3,000 h
  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: Dot
  • Optical Power: 1 mW
  • Laser Class: 2
  • Divergence: H - 1.0 mrad
  • Size of Laserdot: <4mm@2m
  • Optics: acryl lense
  • Laser technology: diode
  • Focus: fixed (2000mm)

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 3 - 4.5 V DC
  • Operating Current: 20 mA
  • Battery: LR44/AG13 alkaline battery, 1.5V
  • Battery count: 2

Mechanical Parameters

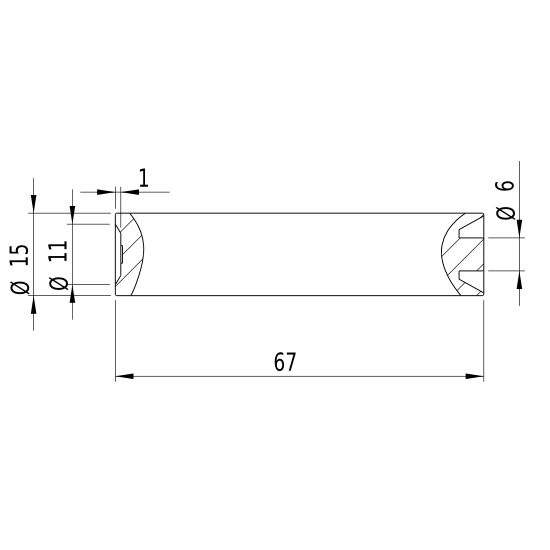

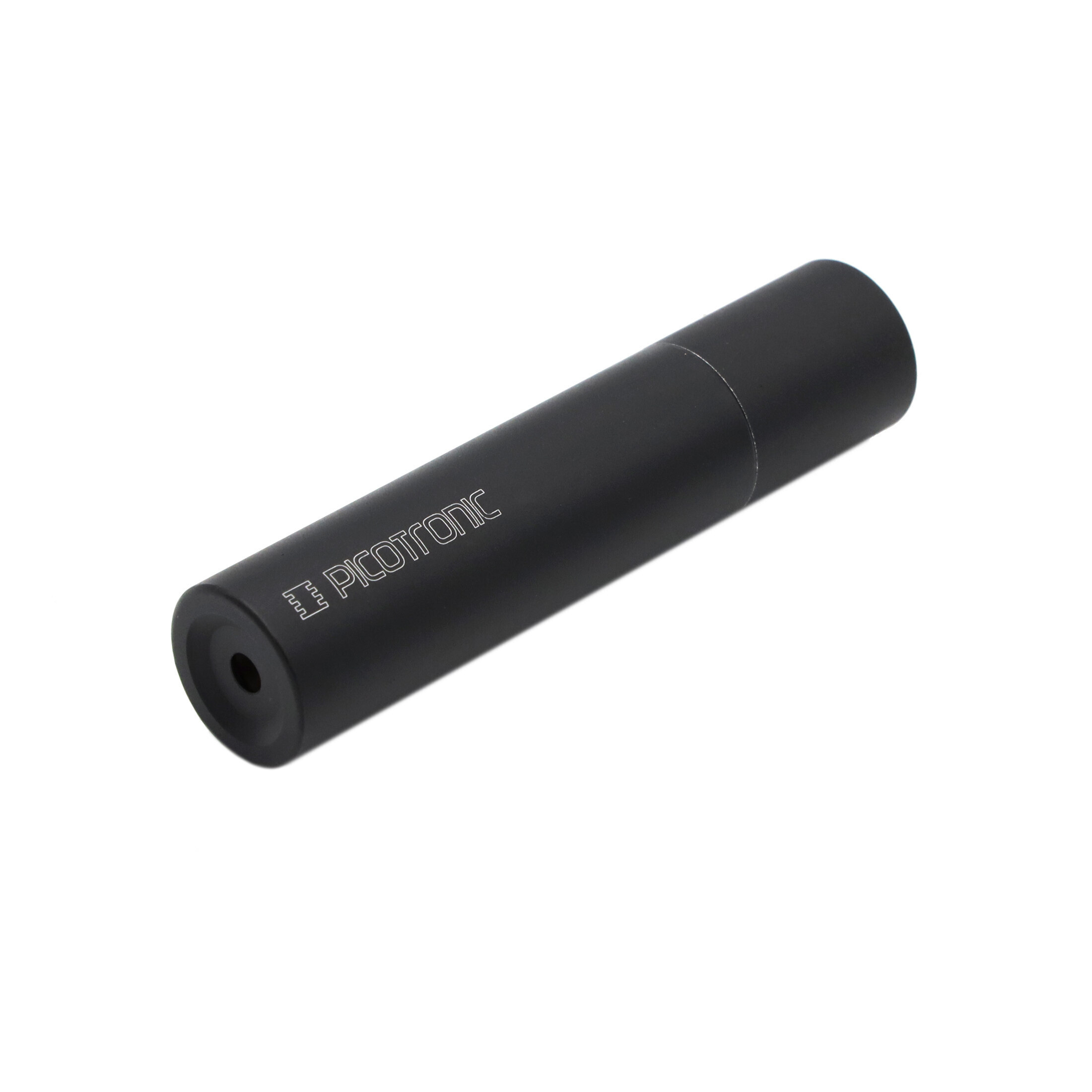

  • Size: Ø15x68 mm
  • Material: aluminium
  • Output Aperture: 6 mm
  • Housing Color: black
  • Weight: 80 g

Buy XD650-1 on Amazon
Optische Diodenleistung: 1 mW
